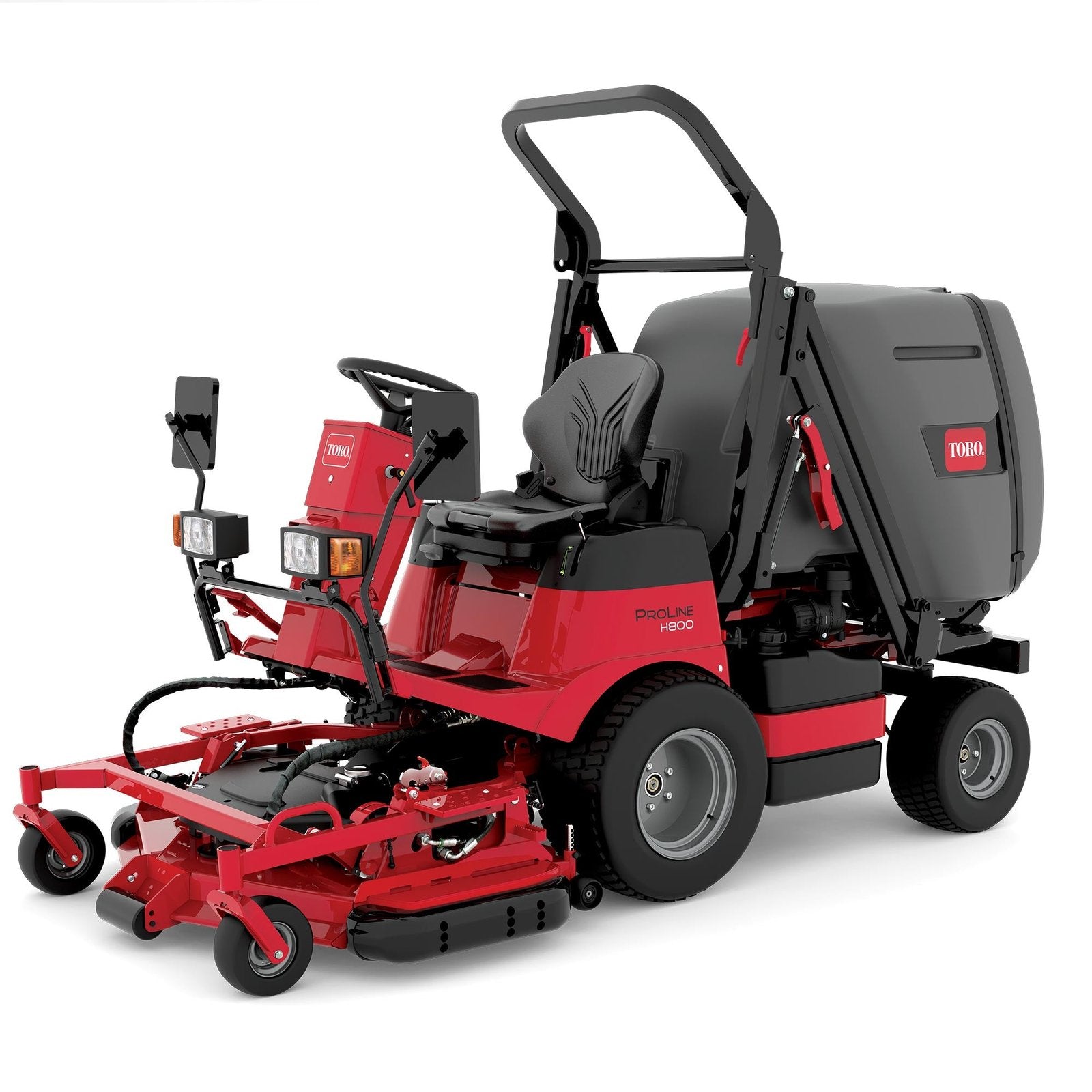

The Toro ProLine H800 direct collect rotary mower with high-lift dump mechanism was engineered for unmatched collection performance and lowest total cost of operation and ownership. Featuring a powerful Yanmar® 24.7 hp (18.4 kW) diesel engine; fast groundspeed up to 9.3 mph (15km/h); our innovative Smart Airflow direct collection design; and 77” (1.95 m) high-lift system that dumps clippings directly into truck beds or trailers, and you can quickly see the ProLine H800 has no equal when comparing overall collection performance and productivity. The ProLine H800 also runs longer without stopping, due to its large 10.8-gallon (41 liter) fuel tank, automatic deck cleaning wipers that prevent the chute from plugging, andinnovative sensor technology that automatically shuts off the mowing deck when the hopper is filled. Packed with productivity enhancing features, the ProLine H800 can mow, collect and dispose of up to 3 acres (12,000 m2) of material per hour!
Air Filter: Remote-mounted 5″ (12.7 cm) Virgis® air filter. 2-stage air cleaner with replaceable primary and safety elements.
Armrests: Optional
Battery: 12V
Blade Style/Type: Rotary
Blade Type (Description): 2 blades per contra-rotating spindle with integrated disc-fan impellers mounted on each spindle. Single pilot blade for the overlap between the two main blade assemblies.
Cab Unit: N/A
Collection System Volume: 810 litre (214 gallons / 1 cu. yd.)
Collector Full Sensor: Adjustable sensor detects when collector is full, automatic PTO shut off.
Controls: Forward and reverse, ,parking brake, ignition key switch, engine throttle, height of cut, diff-lock, lights and flashing beacon, cooling fan (override), PTO on/off. Three hydraulic levers control deck lift/lower, hopper lift/lower, hopper dump.
Cooling System Description: Side mounted radiator with automatic reverse function
Cutting Unit Accessories: Mulching Kit
Cutting Unit Lift/Lower: Hydraulic, adjusted from the operator position by an electronic switch
Cutting Unit Type/Configuration: Two heat-treated blade segments per spindle, bolted to integral fan disc. Single pilot blade for the overlap between the two main blade assemblies.
Deck Construction: Formed and welded deck with front bull-nose bumper
Drivetrain: Diesel
Electrical System: 12-volt battery, 55 amp alternator with P-terminal
Engine Cooling: Liquid Cooled
Fuel / Power Source: Diesel
Fuel Capacity: 10.8 U.S. gal. (40.9 L)
Gauges/Instrumentation: Fuel gauge, hour meter and engine temperature gauge. Parking brake, hopper raised, work light on/off, road lights on/off, air-filter restriction, oil pressure warning, glow plug indicator, battery charge indicators.
Grass Distribution: Automatic electric-powered grass distributor for level filling. Air vent system is engineered to retain and pack clippings with minimal dust or debris discharge.
Ground Following: Cutter deck can be used in either fixed or floating configuration – controlled by the lift/lower control lever. Anti-scalp front nose roller and two rear side rollers also feature.
Ground Pressure: 1.41 kg/cm2 (20 psi), depending on turf conditions
Ground Speed – Forward: 0 – 9.3 mph (0 – 15 km/h)
Ground Speed – Reverse: 0 – 6.2 mph (0 – 10 km/h)
Height: ROPS up: 207 cm (81.5″)
ROPS down: 166 cm (65.4″)
Height of Cut Range: Infinitely variable between 1″ – 4.3″ (25 mm – 110 mm)
Hydraulic Fluid Capacity: 2.5 U.S. gal. (9.5 L)
Hydraulic Fluid Type: ISO46 Hydraulic Oil
IntelliDash™ Capable: No
Interlocks: Cutting unit drive disengages when operator leaves seat. Engine starts only when forward / reverse pedal is in neutral, the parking brake is applied and PTO disengaged.
Lighting: Standard
Main Frame/Chassis: Formed and welded tubular steel chassis
Max Dump Height: 1950 mm (76.8″) with 300 mm overhang
Max Slope Angle: 12 degrees
Mowing Rate (Productivity): Up to 3 acres/hr (1.21 hectacres/hr)
Mowing Speed: 0 – 9.3 mph (0 – 15 km/h)
Number of Blades: 5
Operator Area: Storage holder for mobile phone / radio
Optional Accessories: Mulching kit; Arm rests; Bimini Sunshade; Slope Sensor; Debris Suppression kit; Dust Deflector kit
Overall Width: 143 cm (56.3″)
Parking/Service Brakes: Service brake: Hydrostatic (through transmission). Parking brake: Drum brakes on front wheels, actuated by foot pedal with lock mechanism.
Power Steering: Yes
Power Train (Engine Description): Yanmar® 3-cylinder, liquid-cooled, diesel. Rated Power 24.7 hp (18.4 kW) @ 3000 rpm, Gross Power 24.7 hp (18.4 kW) @ 3000 rpm. High idle: 3200 rpm; Displacement: 1.266 liter.
Product Length: 291 cm (114.6″) (deck down)
PTO Clutch: Belt-driven, Ogura electromagnetic clutch, with magnetic blade brake, powering drive shaft to gearbox on deck. Deck shuts off automatically when grass collector is full.
Recycler Kit: Optional recycler kit
Reel/Cylinder Drive: Hydraulic
Safety/Operator Safety: Two-post folding ROPS frame, certified to meet ISO:21299. Cutting unit drive disengages when operator leaves seat. Engine starts only when forward / reverse pedal is in neutral, the parking brake is applied and PTO disengaged.
Seat: Mechanical suspension Grammer seat, fore/aft and back rest adjustment, retractable seat belt, operator weight adjustment.
Spindle Assembly: 25mm diameter spindles mounted in two greaseable bearings
Starting: Key Start
Steering System Description: Rear axle with hydraulic steering. Adjustable tilt steering wheel with 22/3 turns lock to lock.
Tires – Front: 23″ x 10.5″ – 12″ Turf Tire
Tires – Rear: 18″ x 7.5″ – 8″, Turf Tire
Traction Drive: 4WD
Traction Drive (System): Engine-mounted hydrostatic transmission powering four hydraulic wheel motors providing CrossTrax® full-time all-wheel drive. Manual Diff-lock engagement. Diff-lock automatically engages when transiting downhill.
Turning Circle (Diameter): Outside Front Wheel: 3160 mm (124.4″)
Inside Front Wheel: 741 mm (29.1″)
Outside Rear Wheel: 4035 mm (159″)
Inside Rear Wheel: 2206 mm (87″)
Turning Circle Cut (Diameter): Outside: 3519 mm (138.5″)
Inside: 1227 mm (48.3″)
Weight: with Cutting Deck: 1,005kg (2,216 lbs)
Wheelbase: 119 cm (46.9″)
Width of Cut: 50″ (126 cm)
