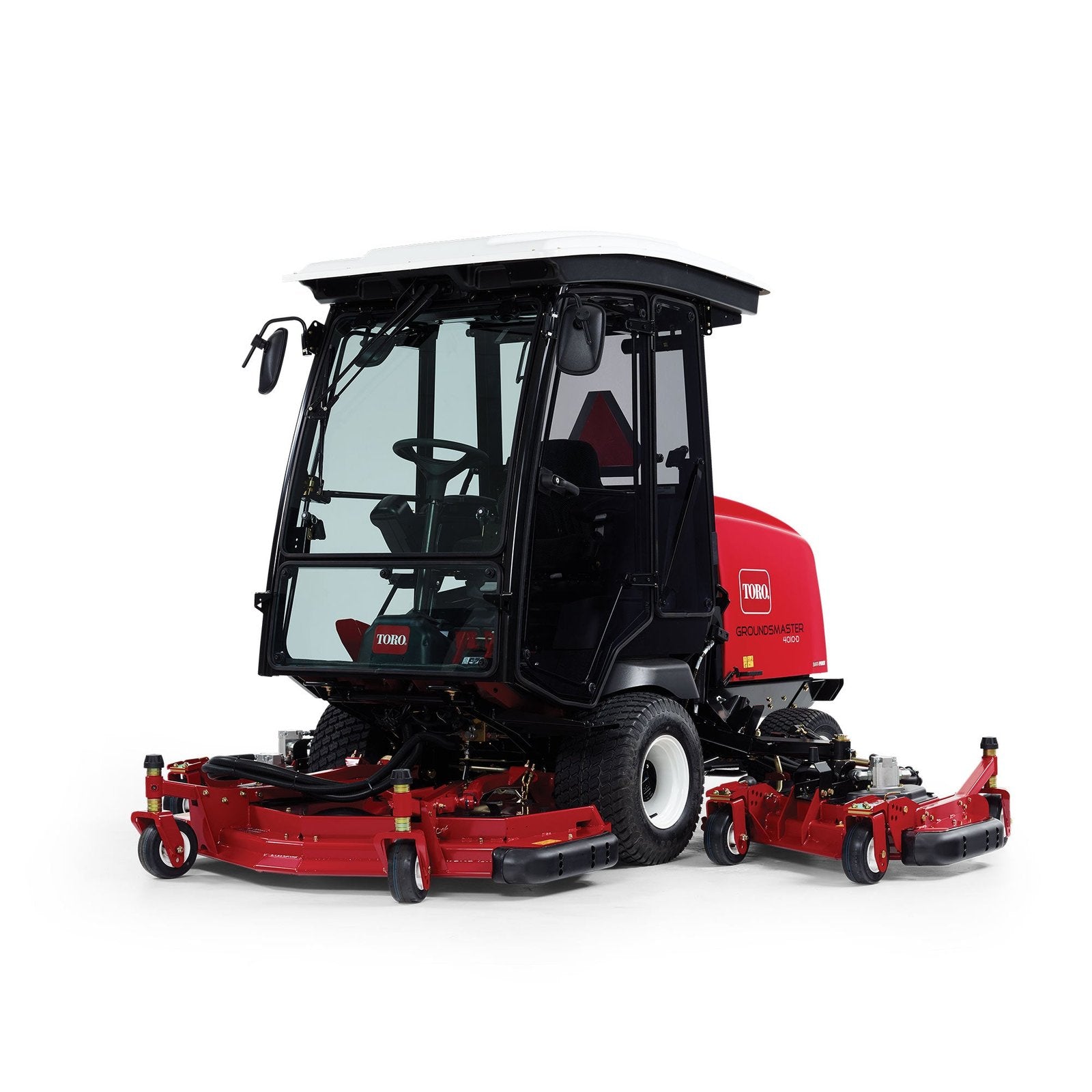

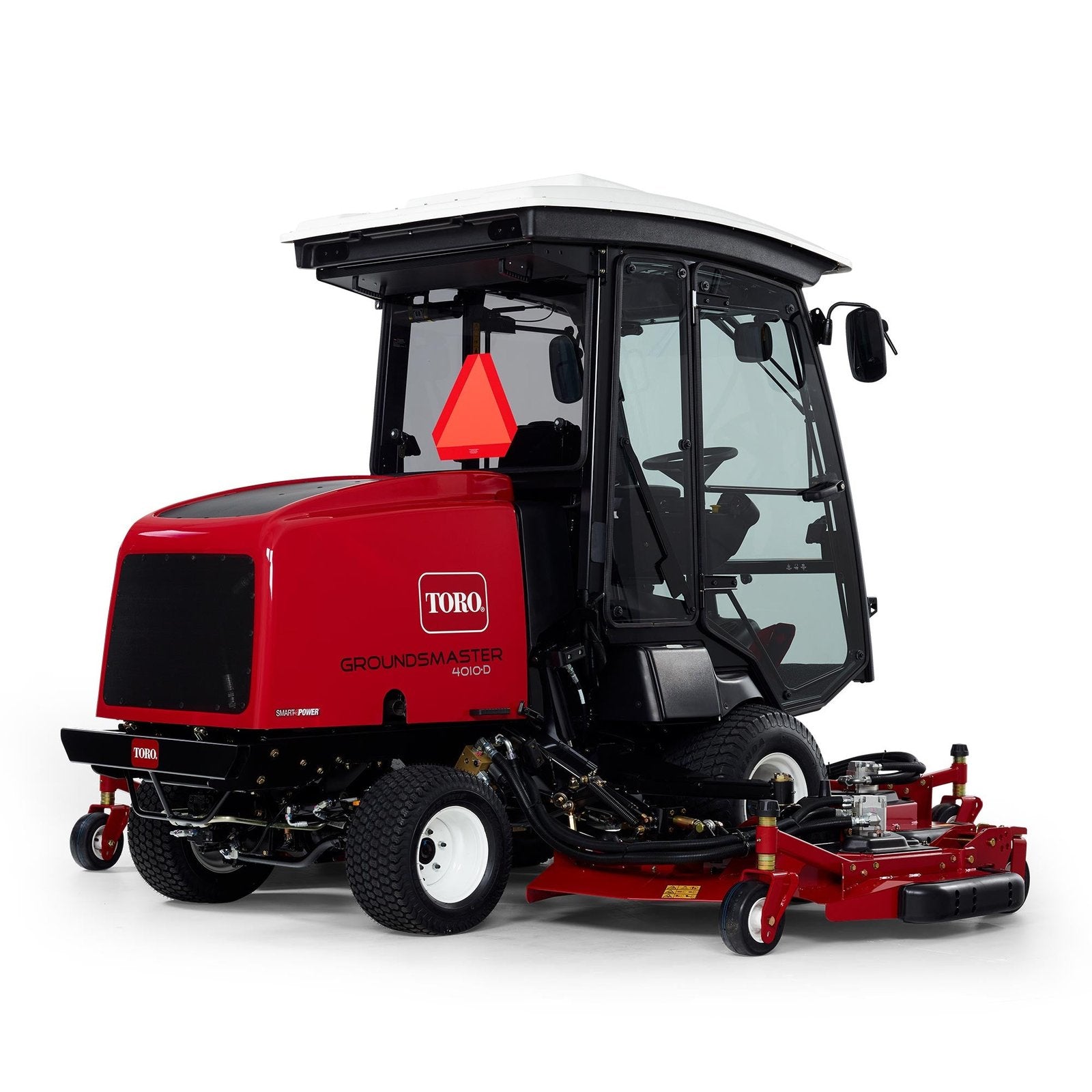

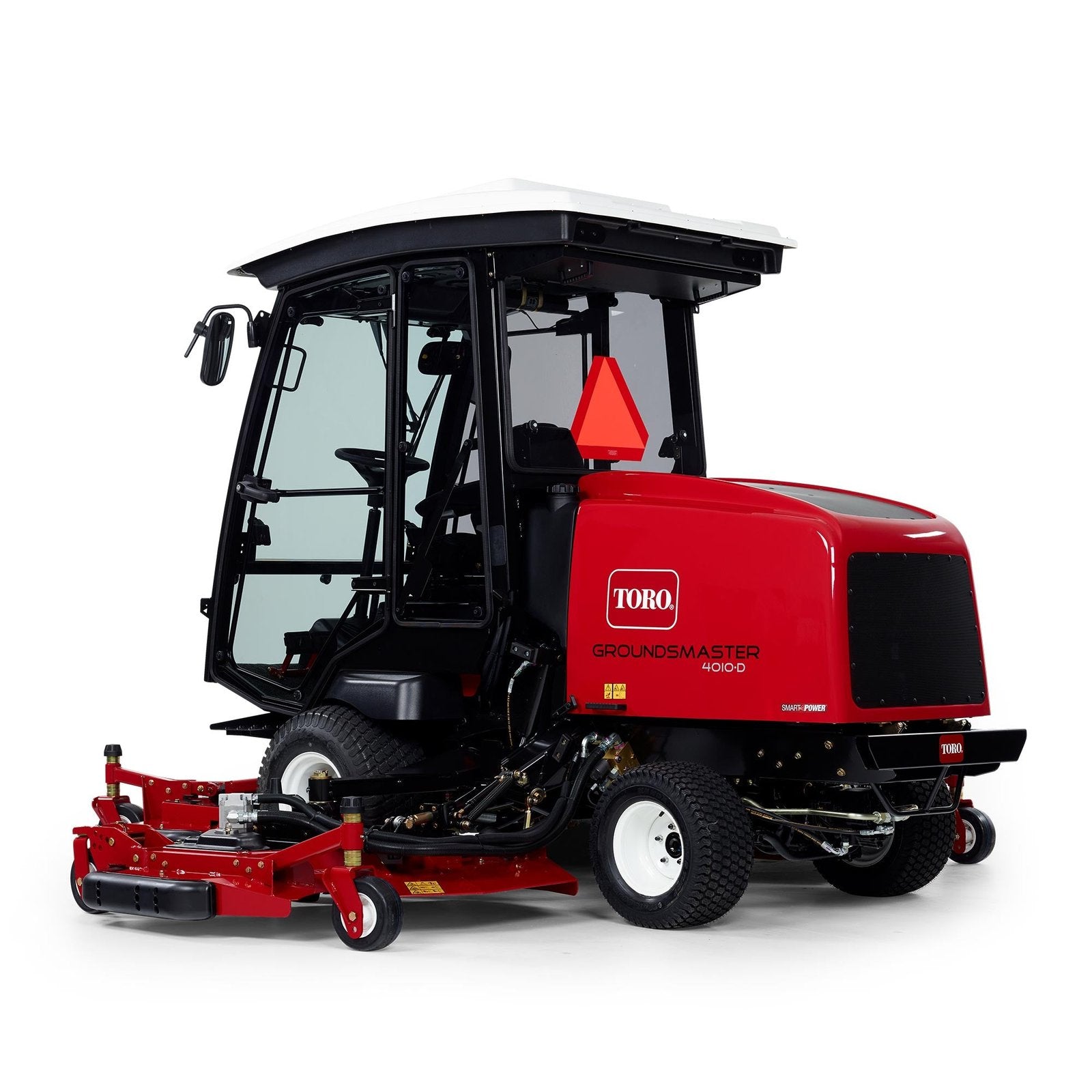

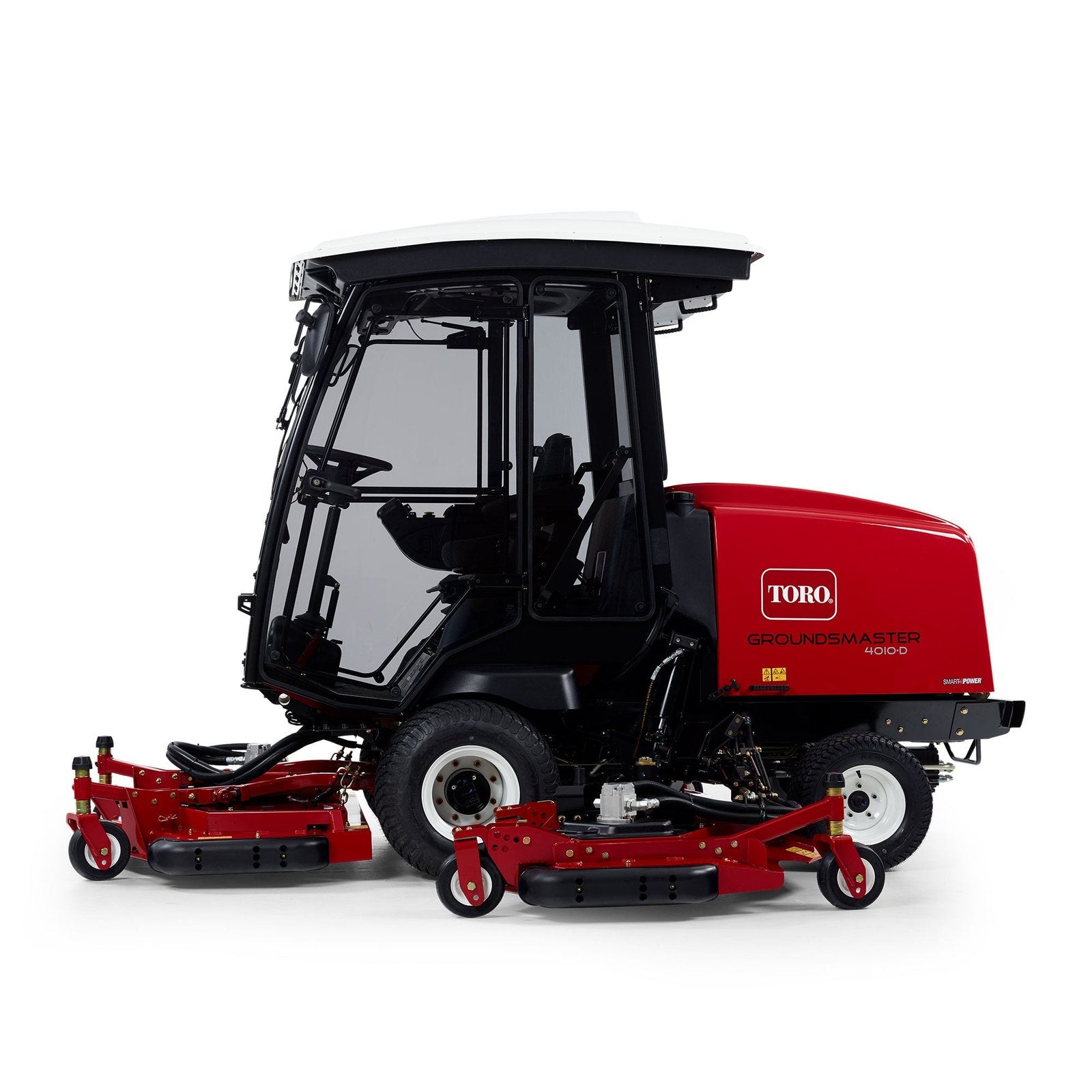

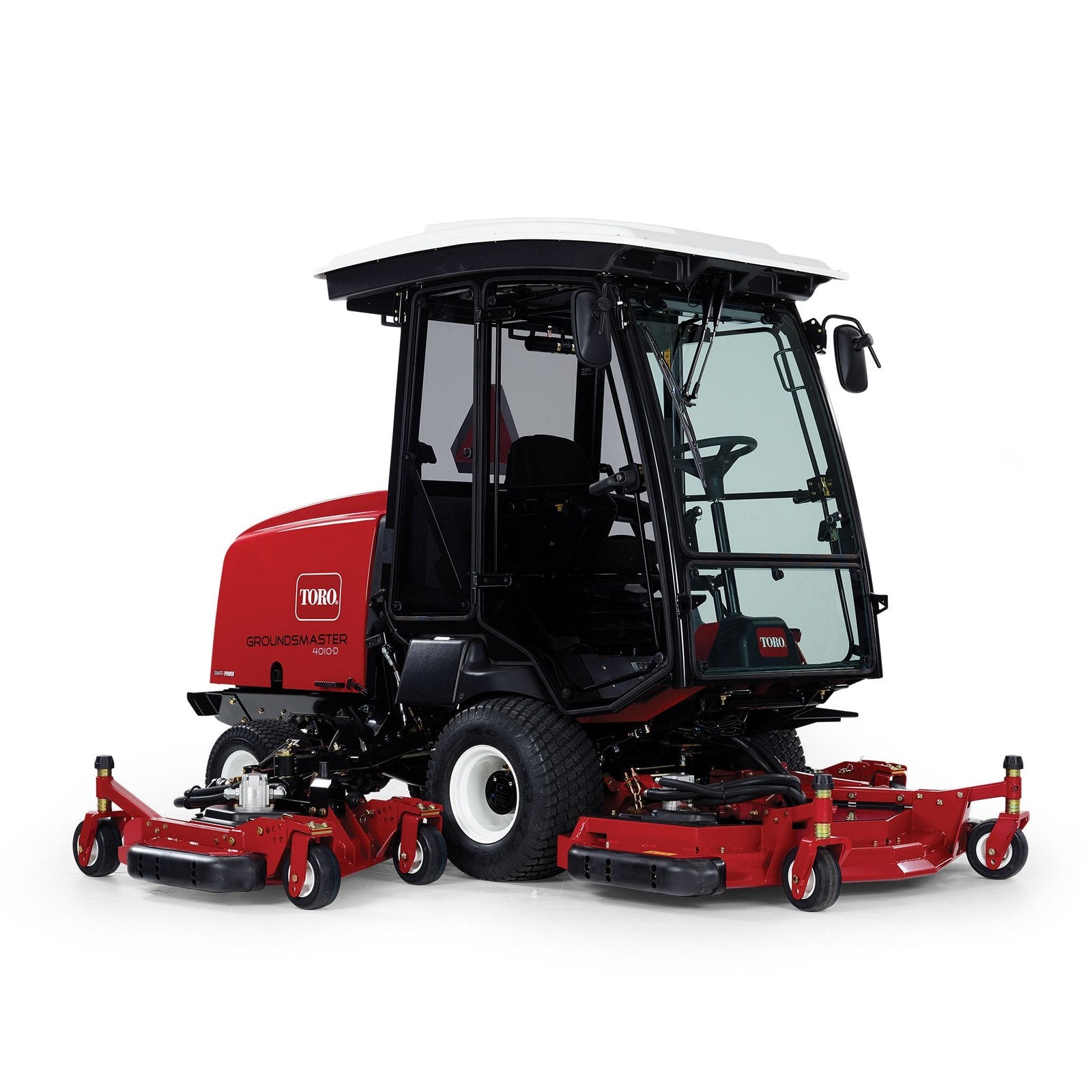

The Groundsmaster® 4010-D rotary mower boasts a powerful turbo-charged 55 hp (41 kW), Tier 4 Final and Stage V compliant diesel engine. Featuring Smart Power™ technology, high engine torque and patented, HybridDrive™ cutting deck system, the Groundsmaster 4010-D delivers power where you need it most, no matter how tough the conditions. With its excellent trimming capability and an ability to mow a 0” uncut circle, the Groundsmaster 4010-D is an extremely efficient mower.The parallel hydraulic traction system maintains consistent hydraulic flow between the front and rear wheels to assure full time 4-wheel drive. This allows you to mow with confidence, even on hills and wet grass. Operators can enjoy mowing productivity in a climate-controlled, all-season safety cab with the Groundsmaster 4010-D.
Air Filter: Dry, replaceable primary and safety elements
Armrests: Standard
Battery: 12V
Blade Style/Type: Rotary
Blade Type (Description): Standard Blades: 21.75″ (55.2 cm) long, 2.5″ (6.4 cm) wide, 0.25″ (0.64 cm) thick
Cab Unit: Heat & Air-Conditioned Safety Cab
Cab Unit Description: All-season, ROPS certified cab includes: climate system pressurized cab, front windshield wiper and washer, interior mirror, folding side mirrors, right, left and rear windows have tinted (50%) glass, quick release window latches act as emergency exit, rubber sound isolator cab mounts, textured neoprene floor mat and interior dome light.

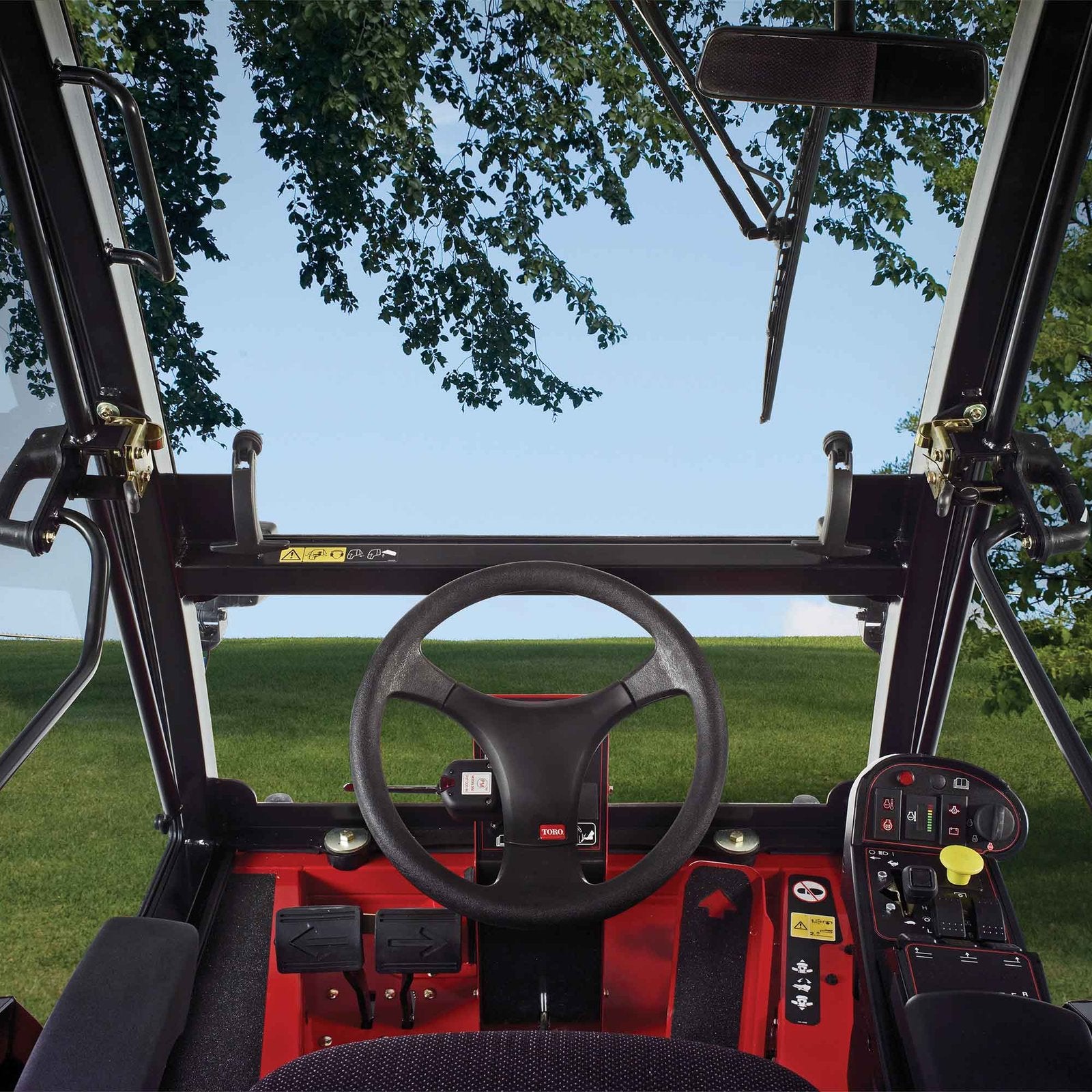

Controls: Tilt steering, ignition, throttle, traction pedal, lockable brake pedals, parking brake lock, mow/transport speed selector, individual deck lift/lower, counterbalance adjustment, tow valves, cup holder, toolbox, radio holder, fan and 12-volt outlet.
Cooling System Description: Single pass cooler, 6.3 fins per inch, Smart Cool™ variable speed radiator cooling fan with automatic and manual reversing capabilities. Rear-mount, cross-flow radiator with 6.3 fins per inch, 9 quart (8.5 liters) capacity.
Cruise Control: Cruise control standard
Cup Holder: Standard
Cutting Unit Accessories: Recycler Kit, Mulching Kit, 8 Inch Foam Filled Caster Wheel, Bumper Skid (White)
Cutting Unit Lift/Lower: Two position switches for individual deck lift/lower
Cutting Unit Type/Configuration: Overall: 132″ (335 cm), Front: 62″ (157.5 cm), Wings: 42″ (106.7 cm), Overlap: 7″ (12.8 cm)
Deck Caster Wheels: 8 x 3.50-4, 4-ply, smooth, pneumatic, sealed precision ball bearings
Deck Construction: Welded 0.100″ (25 mm) steel with 7 and 10-gauge steel channel and plate reinforcements, bullnose bumpers
Deck Wing Protection: Bi-directional, impact absorption device on each wing deck
Drivetrain: Diesel
Electrical System: 12-volt, 690 CCA battery and 80 amp alternator. Overload protection with automotive type fuses.
Engine Cooling: Liquid Cooled
Fuel / Power Source: Diesel / Biodiesel
Gauges/Instrumentation: InfoCenter™: LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temp, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage
Ground Clearance: 6.5″ (16.5 cm)
Ground Following: 6″ anti-scalp cups on each blade, adjustable skids on each deck, 4 anti-scalp rollers on front deck and 1 on each wing
Ground Speed – Forward: 0 – 16.2 mph (0 – 26.1 km/h)
Ground Speed – Reverse: 0 – 8.1 mph (0 – 13 km/h)
Height: 85″ (216 cm) with ROPS up
93.9″ (237 cm) with cab
Height of Cut Range: 1″ – 5″ (25 mm – 127 mm) in 0.5″ (13 mm) increments
Hydraulic Fluid Capacity: 8.75 U.S. gal. (33.1 L)
Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid
Implement Drive: Direct mounted hydraulic motor into spindle. Remaining spindle(s) driven by individual B section Kevlar belt. Quick release belt covers.
Interlocks: Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat while moving or deck is engaged, traction and/or deck stops. Mowing only permitted in low range. Traction not allowed if parking brake engaged and pedal moved out of neutral. Deck transport latches.
Lighting: Optional
Main Frame/Chassis: All welded formed-steel frame with integral tie-down anchors
Max Slope Angle: Refer to operator’s manual
Mowing Rate (Productivity): Up to 11.0 acres/hr (4.5 hectacres/hr)
Mowing Speed: 0 – 8.3 mph (0 – 13.4 km/h)
Number of Blades: 7
Oil Capacity: 8 U.S. qt. (7.6 L)
Optional Accessories: Road Light Kit (includes LED headlights, brake lights, tail lights, amber turn signals, flashers and slow moving vehicle sign), LED Work Lights, Additional Turn Signals, Sunshade, Beacon, Slope Sensor, Horn Kit, 4WD Flow Divider Kit
Overall Width: 136″ (346 cm) with decks down
Parking/Service Brakes: Mechanically actuated, internal wet disc brakes on input to each planetary drive. Individual foot-operated steering brake control left and right wheel. Lock pedals together & latch to engage parking brake.
Power Steering: Yes
Power Train (Engine Description): Yanmar® 4-cylinder, liquid-cooled, turbo-charged diesel. 127 cu. in. (2.1 liter) displacement. Engine rated at 55 hp (41 kW) net and 125 ft.-lbs. (169 Nm) torque at 2,000 rpm. EPA Tier IV Final and Stage V compliant.
Product Length: 135″ (343 cm) with decks down
Safety/Operator Safety: ROPS certified cab, front and rear windows open, quick release window latches act as emergency exit, seat belt. <80 dB sound pressure at operator’s ear when Quiet Mode activated by Toro Distributor.
Seat: 4-way adjustable seat, right armrest travels with seat and suspension
Spindle Assembly: 1.25″ (3.17 cm) diameter spindle shafts, 9″ (22.9 cm) diameter conical ductile iron housing, and 2 greaseable tapered roller bearings
Starting: Key Start
Steering System Description: Power steering with dedicated power source. Steering wheel tilts to desired operator position.
Tires – Front: 26″ x 12″ – 12″, 6-ply, Tubeless Multi-Trac
Tires – Rear: 20″ x 10″ – 10″, 6-ply, Tubeless Multi-Trac
Tool Box: Standard
Traction Drive: 4WD
Traction Drive (System): Parallel hydrostatic, closed loop system with full-time 4WD. Forward/reverse in low (mow) and high (transport) range with full-time, automatic traction assist (forward only).
Transport Width: 71″ (180 cm) @ 2″ (5 cm) HOC
Turning Circle (Diameter): Uncut circle: 0″ diameter
Weight: 4759 lbs. (2159 kg) with full fluids
Wheelbase: 55.5″ (140 cm)
Width of Cut: 132″ (335 cm)
